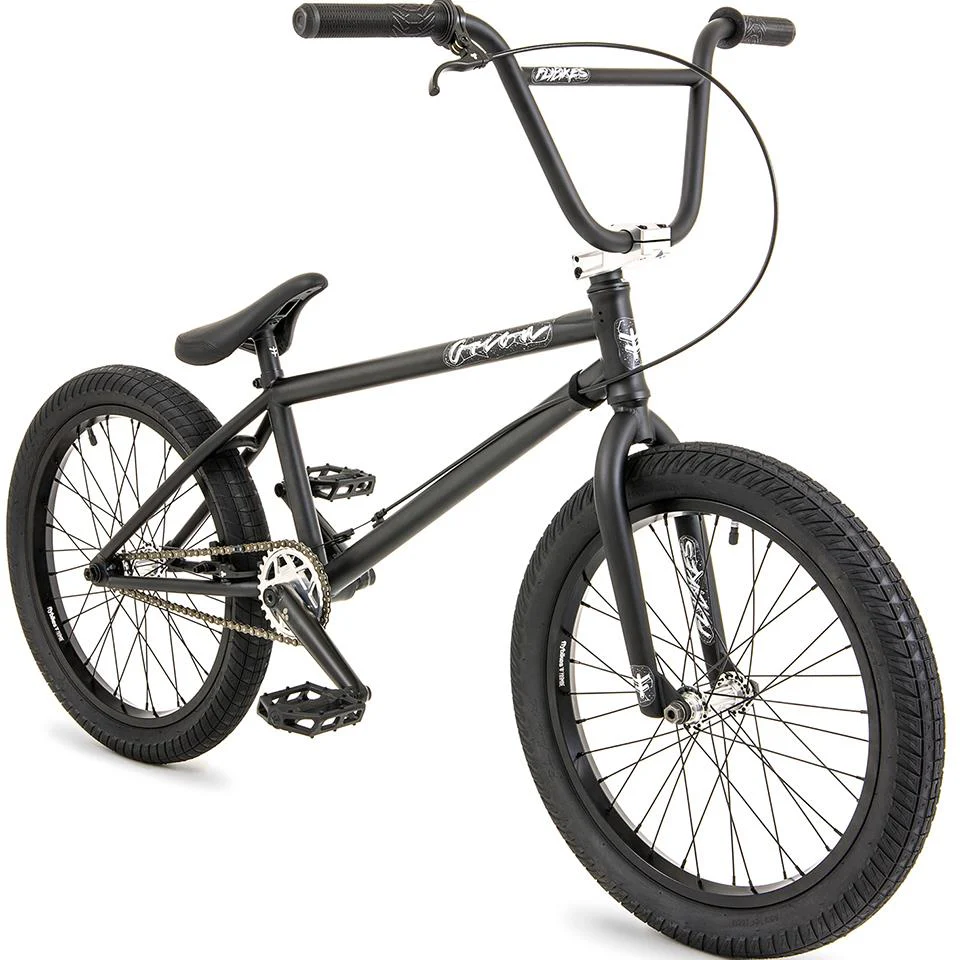

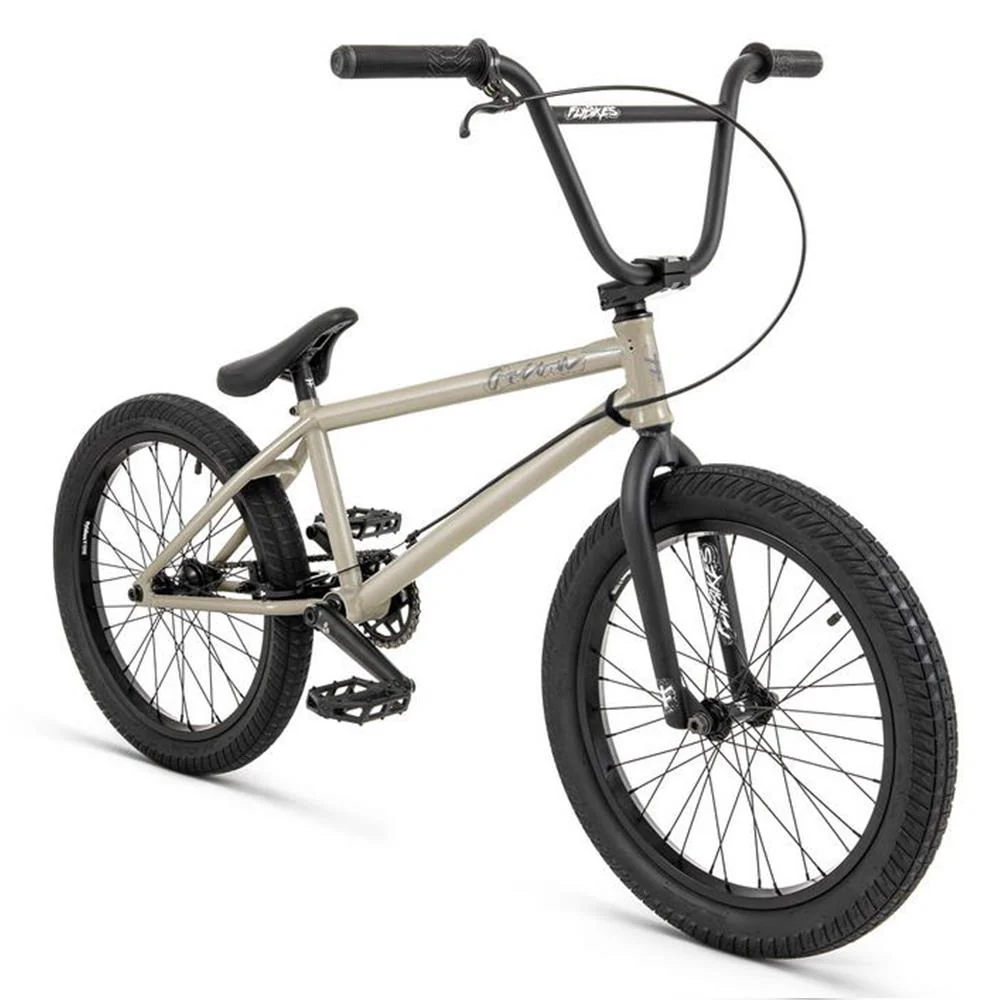

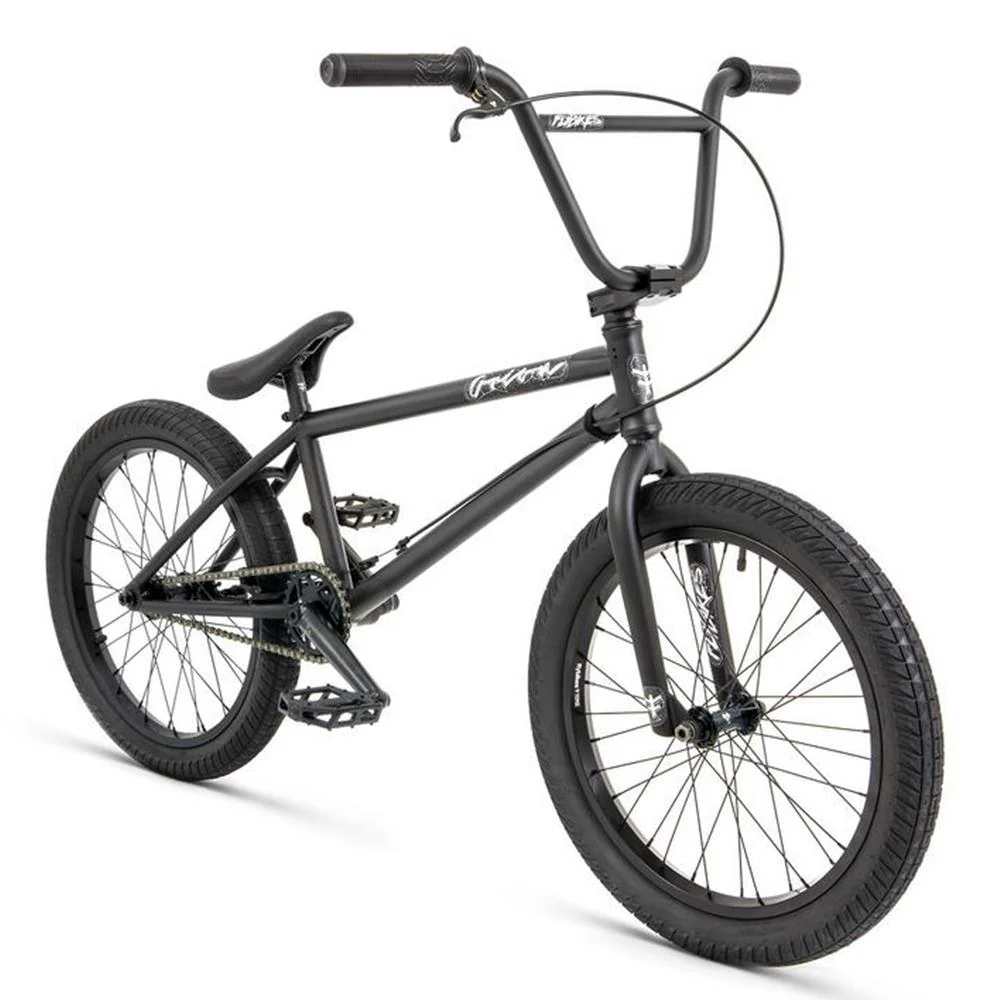

Fly Orion BMX Bike

Fly took Sergio Layos and Josh Dove as inspiration to build a bike that even they could ride straight out of the box. The Orion comes equipped with the full range of Ruben Alcantara signature parts, including the new Ruben 2 Grips

###section###

Product Specs

1. FRAME MATERIAL: FULL 4130 CRMO
2. WHEEL SIZE: 20"
3. TOP TUBE LENGTH: 21"
4. CHAIN STAY LENGTH: 13.7"
5. HEADTUBE ANGLE: 74.5°
6. SEAT TUBE ANGLE: 71°
7. FORKS: INTEGRATED CONE SHAPE DESIGN / FULL 4130 CRMO / 1 PIECE STEER TUBE
8. BARS: FULL 4130 CRMO
9. STEM: FLY VOLCANO 25MM RISE / 50MM REACH / CNC MACHINED / 6061-T6 ALUMINUM
10. HEADSET: TREBOL / SEALED BEARING / CNC MACHINED / 6061-T6 ALUMINUM
11. BRAKE MOUNTS: Removable
12. BRAKES: TREBOL SPRINGHANGER / FORGED / 6061 T-6 ALUMINUM
13. FRONT HUB: TREBOL BUENO / SEALED BEARING / 3/8” FEMALE AXLE / 36H
14. FRONT RIM: FLY PIRAMIDE / DOUBLE WALL / 6061-T6 ALUMINUM
15. REAR HUB: TREBOL BUENO / SEALED BEARING / 14MM FEMALE AXLE / 36H / 9T
16. REAR RIM: FLY PIRAMIDE / DOUBLE WALL / 6061-T6 ALUMINUM
17. TYRES: FLY RUBEN LIGERA 2.40 FRONT / FLY RUBEN 2.25 REAR / 60 TPI / 120 PSI
18. SPROCKET: FLY TRACTOR TT / CNC MACHINED / 7075-T6 ALUMINUM / 29T
19. CRANKS: TREBOL 3PC / 4130 CRMO / 175 MM ARM LENGTH
20. BB: MID / SEALED BEARING
21. PEDALS: FLY RUBEN GRAPHITE / NYLON - FIBERGLASS COMPOUND
22. SEAT: FLY SIERRA 3 SEAT / 100% SYNTHETIC LEATHER / 7 MM THICKNESS
23. GEARING: 29/9
24. WEIGHT: 25.1lbs

###section###

Product Highlights

• Longer top tube is great for taller riders who need a bit more room (6ft / 180cm plus)
• Designed with more stable feeling geometry to suit trails and park riding
• Sealed bearings throughout
• Strong and durable double walled rims
• Chain Tensioners To Help Keep Your Wheel In Place
