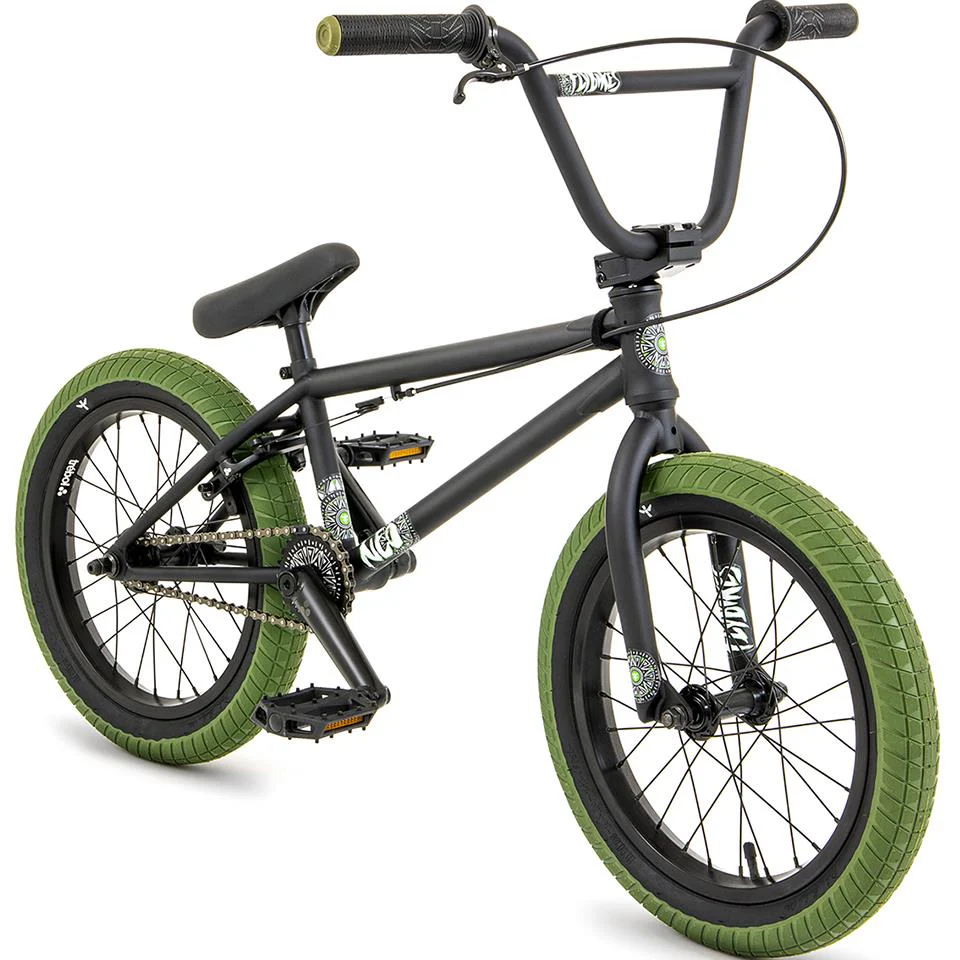

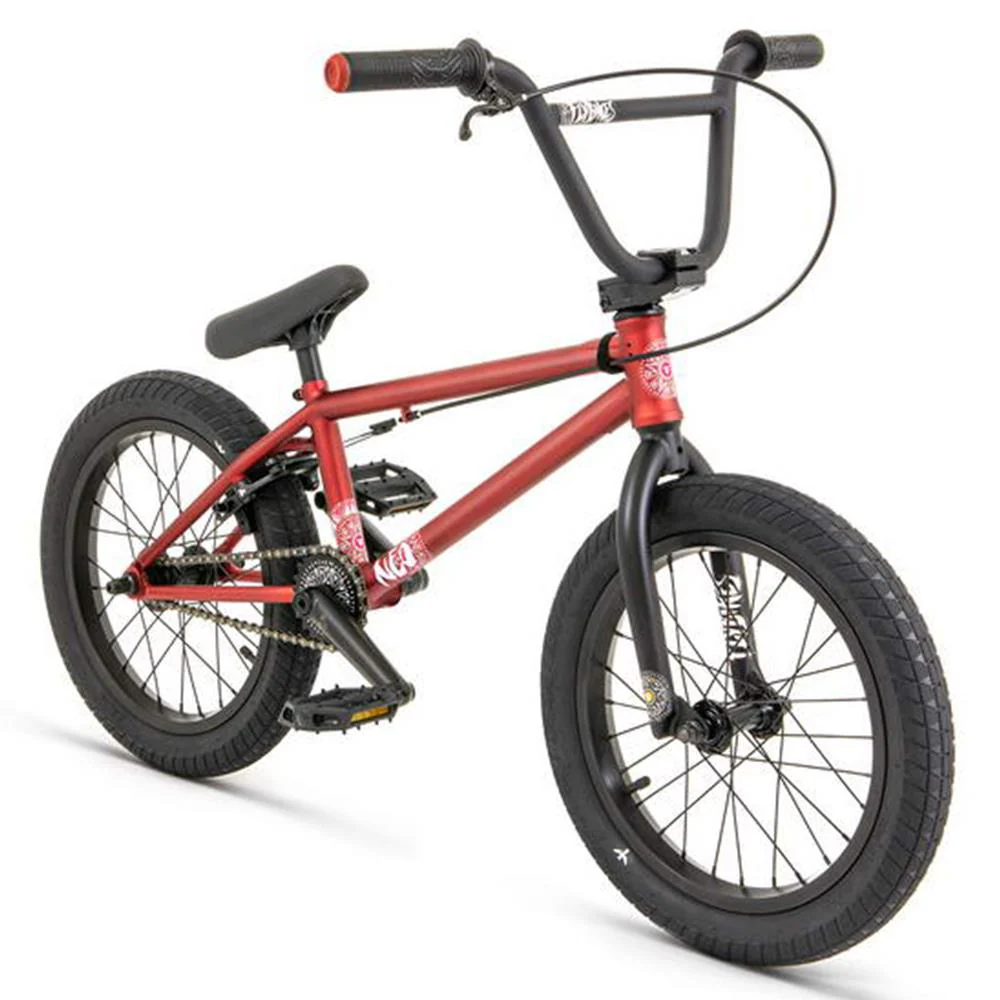

Fly Neo 16" BMX Bike

The 16” Neo might be Fly's smallest complete, but it’s one dialed bike! They’ve made this bike even better by adding the Mini Trebol Lever and a shorter 40mm reach Trebol stem to replace the generic parts from past years. These two details bring them one step closer to their goal of having a 100% aftermarket 16” Neo bike with aftermarket parts like the 16” Ruben tyres, 140mm Trebol Bueno cranks and a Fully sealed rear Trebol Cassette hub.

###section###

Product Specs

1. FRAME MATERIAL: FULL 1020 HITEN
2. WHEEL SIZE: 16"
3. TOP TUBE LENGTH: 16"
4. CHAIN STAY LENGTH: 10.6"
5. HEADTUBE ANGLE: 75°
6. SEAT TUBE ANGLE: 71°
7. FORKS: INTEGRATED CONE SHAPE DESIGN / 4130 CRMO STEERER / 1020 HITEN LEGS
8. BARS: 1020 HITEN
9. STEM: TREBOL MINI TOP LOADER / 40MM REACH / FORGED / 6061 T-6 ALUMINUM
10. HEADSET: TREBOL INTERNAL SEALED BEARING
11. BRAKE MOUNTS: Welded
12. BRAKES: TREBOL SPRINGHANGER / FORGED / 6061 T-6 ALUMINUM
13. FRONT HUB: ALLOY SHELL / LOOSE BALL / 3/8” MALE AXLE / 28H
14. FRONT RIM: Single Wall, AlloyTREBOL / DOUBLE SIDE WALLED / 6061-T6 ALUMINUM / 28H
15. REAR HUB: TREBOL / SEALED BEARING / 4MM MALE AXLE / 28H / 9T
16. REAR RIM: Single Wall, AlloyTREBOL / DOUBLE SIDE WALLED / 6061-T6 ALUMINUM / 28H
17. TYRES: FLY RUBEN 2.0 FRONT & REAR / 60 TPI / 65 PSI
18. SPROCKET: CNC MACHINED / 6061-T6 ALUMINUM / 23T
19. CRANKS: TREBOL 3PC / 4130 CRMO / 140 MM ARM LENGTH
20. BB: SPANISH / SEALED BEARING
21. PEDALS: MINI NYLON - FIBERGLASS COMPOUND
22. SEAT: NEO COMBO / 6061 T-6 ALUMINUM SEATPOST
23. GEARING: 23/9
24. WEIGHT: 19.8lbs

###section###

Product Highlights

• Smaller 16" Wheels - The Perfect fit for for 5-8 years olds (3ft - 3ft 6 / 90cm - 105cm)
• Specifically designed for the smaller rider, just starting out in BMX
• Strong Hi-ten steel construction
• Sealed rear hub
• High-quality aftermarket tires
